# Realtime Speech-to-Text

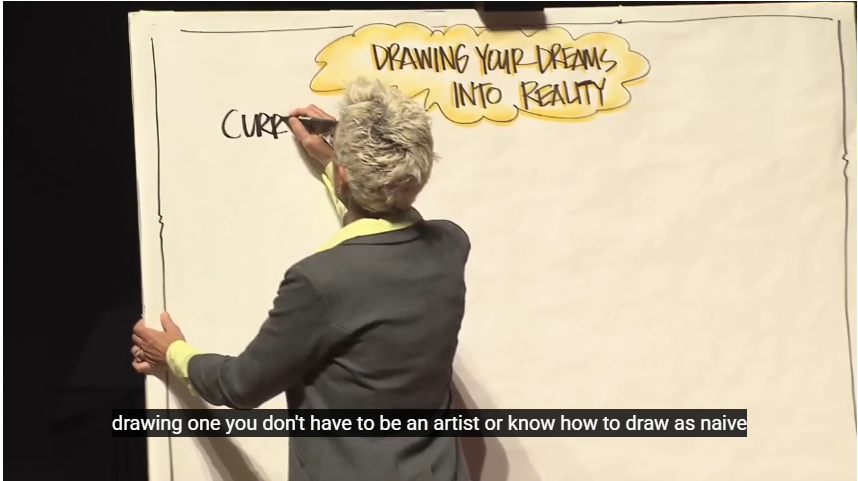

OvenMediaEngine (OME) version 0.20.0 and later supports real-time automatic subtitles through integration with whisper.cpp. This feature converts live audio streams to text in real time and can optionally translate the recognized speech into English.

For real-time performance, an NVIDIA GPU is strongly recommended. While whisper.cpp can run on the CPU, it may result in latency or incomplete transcription.

<figure><img src="https://content.gitbook.com/content/xo7moYXTh3yBG01Dy49w/blobs/7rLCQ399qa6unmpxSrx2/image.png" alt=""><figcaption></figcaption></figure>

## Prerequisites

### NVIDIA GPU and Driver

Check your GPU and driver status using:

```
$ nvidia-smi
+---------------------------------------------------------------------------------------+
| NVIDIA-SMI 535.288.01             Driver Version: 535.288.01   CUDA Version: 12.2     |
|-----------------------------------------+----------------------+----------------------+
| GPU  Name                 Persistence-M | Bus-Id        Disp.A | Volatile Uncorr. ECC |
| Fan  Temp   Perf          Pwr:Usage/Cap |         Memory-Usage | GPU-Util  Compute M. |
|                                         |                      |               MIG M. |
|=========================================+======================+======================|
|   0  NVIDIA GeForce GTX 1050        On  | 00000000:3B:00.0  On |                  N/A |
| 20%   39C    P8              N/A /  75W |    204MiB /  2048MiB |      0%      Default |
|                                         |                      |                  N/A |
+-----------------------------------------+----------------------+----------------------+
|   1  NVIDIA RTX 4000 SFF Ada ...    On  | 00000000:AF:00.0 Off |                  Off |
| 30%   38C    P8               5W /  70W |    171MiB / 20475MiB |      0%      Default |
|                                         |                      |                  N/A |
+-----------------------------------------+----------------------+----------------------+

+---------------------------------------------------------------------------------------+
| Processes:                                                                            |
|  GPU   GI   CI        PID   Type   Process name                            GPU Memory |
|        ID   ID                                                             Usage      |
|=======================================================================================|
|    0   N/A  N/A    802940      C   ...prise/src/bin/DEBUG/OvenMediaEngine       40MiB |
|    1   N/A  N/A    802940      C   ...prise/src/bin/DEBUG/OvenMediaEngine      158MiB |
+---------------------------------------------------------------------------------------+
```

If a driver is not installed, download it from the NVIDIA website or use the helper script provided in the OME repository.

Official driver: <https://www.nvidia.com/en-us/drivers/>

OME install script: \
<https://github.com/OvenMediaLabs/OvenMediaEngine/blob/master/misc/install_nvidia_driver.sh>

{% hint style="warning" %}
This script installs the versions recommended by OME. If you want to install the latest version, change the parameters.
{% endhint %}

### CUDA Toolkit

CUDA Toolkit is required to build whisper.cpp with GPU acceleration.

* Download from: <https://developer.nvidia.com/cuda-downloads>
* Use a version that matches your GPU generation.
  * Recommended CUDA Toolkit : v12.0 \~ v12.8

### Build and Install whisper.cpp

Run the latest prerequisites.sh script from the OME source root to build and install whisper.cpp.

```
$ ./misc/prerequisites.sh --enable-nv
```

## Configuration

Enable subtitles by using `<Subtitles>`. For more details, refer to the [Subtitles](https://ovenmediaengine-enterprise.gitbook.io/guide/features/transcoding-and-processing/subtitles) section. Each `<Rendition>` can include a `<Transcription>` element to enable speech-to-text.

Example configuration:

```xml
<Application>
    <Subtitles>
        <Enable>true</Enable>
        <DefaultLabel>Origin</DefaultLabel>
        <Rendition>
            <Language>auto</Language>
            <Label>Origin</Label>
            <AutoSelect>true</AutoSelect>
            <Forced>false</Forced>
            <Transcription>
                <Engine>whisper</Engine>
                <Model>whisper_model/ggml-small.bin</Model>
                <AudioIndexHint>0</AudioIndexHint>
                <SourceLanguage>auto</SourceLanguage>
                <Translation>false</Translation>
            </Transcription>
        </Rendition>
        <Rendition>
            <Language>en</Language>
            <Label>English</Label>
            <AutoSelect>true</AutoSelect>
            <Forced>false</Forced>
            <Transcription>
                <Engine>whisper</Engine>
                <Model>whisper_model/ggml-small.bin</Model>
                <AudioIndexHint>0</AudioIndexHint>
                <SourceLanguage>auto</SourceLanguage>
                <Translation>true</Translation>
            </Transcription>
        </Rendition>
    </Subtitles>
```

{% hint style="warning" %}
The `<Subtitles>` configuration has been moved from `<Application><OutputProfiles><MediaOptions><Subtitles>` to `<Application><Subtitles>`. Please update your existing configuration accordingly.
{% endhint %}

The Transcription configuration includes the following options:

<table><thead><tr><th width="164">Key</th><th>Description</th></tr></thead><tbody><tr><td>Engine</td><td>The STT engine to use. Currently, only "whisper" is supported.</td></tr><tr><td>Model</td><td>Specifies the path to the whisper.cpp model file.</td></tr><tr><td>AudioIndexHint</td><td>Specifies the index of the audio track in the input stream. Default is 0</td></tr><tr><td>SourceLanguage</td><td>Specifies the language code of the input audio (ISO 639-1, e.g., ko, en, ja). Set to auto to enable automatic detection</td></tr><tr><td>Translation</td><td>When set to true, translates the recognized text into English. whisper currently supports translation to English only. If this is true, the resulting subtitle track language is automatically set to English (en)</td></tr></tbody></table>

### Model

The option specifies which whisper.cpp model is used for transcription. Model files can be downloaded from <https://huggingface.co/ggerganov/whisper.cpp> For example, you can download a model with the following command:

```
$ wget https://huggingface.co/ggerganov/whisper.cpp/resolve/main/ggml-base.bin
$ wget https://huggingface.co/ggerganov/whisper.cpp/resolve/main/ggml-small.bin
$ wget https://huggingface.co/ggerganov/whisper.cpp/resolve/main/ggml-medium.bin
$ wget https://huggingface.co/ggerganov/whisper.cpp/resolve/main/ggml-large.bin
$ wget https://huggingface.co/ggerganov/whisper.cpp/resolve/main/ggml-large-v2.bin
```

The model path can be set either as a relative path based on the configuration directory (where Server.xml is located) or as an absolute path starting with /. Smaller models such as ggml-small.bin provide faster performance but lower accuracy, while larger models like ggml-base.bin or ggml-large.bin offer higher accuracy at the cost of increased computation and memory usage.
